UV Accelerated Aging Test Chambers simulates the damage caused by sunlight, rain, and dew. UV lamps simulate the effects of sunlight, while condensation simulates rain and dew. The test material is placed in a cycle of alternating light and moisture at a specific temperature for testing. UV test data can help you select new materials and assess how changes in formulation affect the durability of new products.

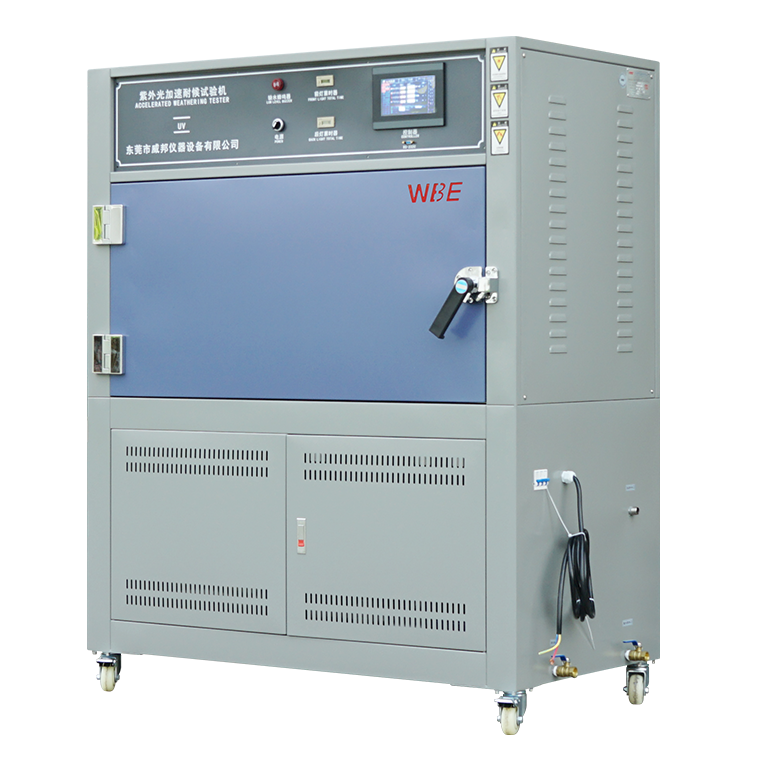

WBE UV Accelerated Aging Test Chambers:
UV testing can reproduce damage that would occur outdoors over months or years in just a few days or weeks. Types of damage include: fading, discoloration, loss of gloss, chalking, cracking, clouding, bubbling, embrittlement, strength degradation, and oxidation. UV test data can help you select new materials and assess how changes in formulation affect the durability of new products. It is widely used in coatings, inks, paints, resins, plastics, rubber, printing and packaging, aluminum profiles, adhesives, automotive, motorcycle industries, cosmetics, metals, electronics, electroplating, and pharmaceuticals.
UV Accelerated Aging Test Chambers Standard Test：
Chamber Parammeter:
| UV Accelerated Aging Test Chambers | |
| Model | WBE-UV-3 |
| Testing Functions | Light Irradiation / Rain Spray / Condensation / Irradiance Exposure |
| Irradiation Lamps | 8 lamps total (A-340 or B-313, optional), 4 lamps per side, 2 sides |
| Sample Capacity | Requires samples of W75 × D150mm (thickness within 15mm) |
| Lamp Brand | Original imported ATALS (USA) |
| Center Distance Between Lamps | 70mm |
| Minimum Parallel Distance from Sample to Lamp Surface | About 50 mm |
| Wavelength Range | UV-A(315~400nm)、UV-B(280~315nm) |
| Irradiance Intensity | Adjustable within 0.3 W/m² ~ 1 W/m² |
| Temperature Resolution | 0.1℃ |
| Light Cycle Temperature Range | 50°℃~70℃/Temperature tolerance: ±3℃ |
| Condensation Cycle Temperature Range | 40°℃~60℃/Temperature tolerance: ±3℃ |
| Temperature Control Method | PID Self-tuning Control |
| Humidity Range | About 45% ~ 70% R.H (Light Cycle) / Above 98% R.H (Condensation Cycle) |
| Test Space | 75×150mm 48pcs |
