WBE Xenon Test Chamber: A testing device that evaluates the weather resistance of materials by simulating the solar spectrum and climatic conditions. It uses a special xenon lamp as the light source, accurately simulating the effects of ultraviolet (UV), visible, and infrared radiation on materials. This helps us understand the aging characteristics of different materials under long-term light exposure.
1.Application Areas And Standards Met:
| General |
ASTM G151、ASTM G155、IEC60068-2-5、1S0 4892-2、GB/T 16422.2 |
| Automobile |
PV1303、PV3929、PV3930、GB/32088、SAE J2412、SAE J2527、GM 9125P、ASTM D7356、ASTM D7869、ASTM D925、GB 5137.3 |
| Electronics |
GB/T 2423.24、GB/T 22079、GBT2424.14、IEC60068-2-5、MIL- 810,505.5、ASTM D4459、ASTM D2565 |
| Building Materials And Furniture |
GB/T 29365、GB/T 29061、GB/T8814、GB/T11793、GB/T18244、GB/T 16777、GB/T 15102、GB/T15104、GB/T16259、GB/T 17657 |
| Wind And Solar Power |
IEC 61345、GB/T 24798、IEC 61215 |
| Plastics And Packaging Materials |
GB/T16422.2、GB/T18424、GB/T3511、ASTM D2565、ASTM D4459、ASTM D5071、ASTM D6551、ASTM F1515、ISO 4892-2、ASTM D1148 |

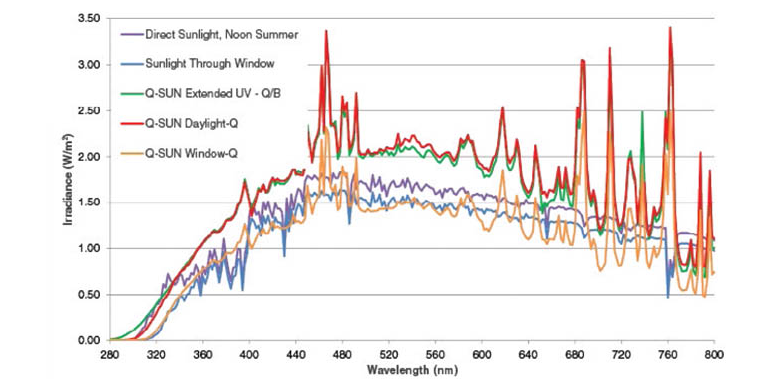

2.Full Spectrum ![]()

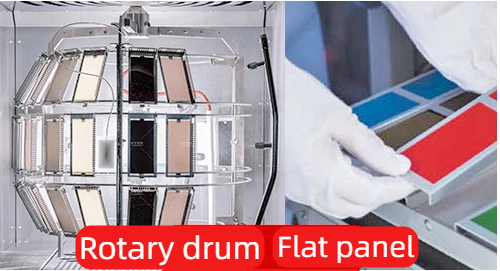

3.Sample Rack Selection：
Rotary drum type: Ensures thorough and even exposure of each sample; customizable sample rack diameters accommodate various irregularly shaped samples.
Flat plate type: Can simultaneously hold samples of different shapes and sizes, offering convenient and efficient placement.
![]()
WBE Xenon Test Chamber Feature:
• Simulates full-spectrum sunlight (ultraviolet (UV), visible, and infrared) with temperature and humidity control and water spray function.
• Available in different models and configurations to meet various testing needs, including air-cooled xenon lamps, water-cooled xenon lamps, and benchtop xenon lamps, catering to different experimental scales and conditions.
• High-precision and wide-range temperature and humidity control, covering low-temperature and low-humidity experiments.
• Customized rotating/flat sample holders to accommodate samples of different shapes and sizes, meeting varying light intensity requirements and providing higher magnification light intensity.
• Integrated control interface dynamically displays temperature, humidity, irradiance, rain, and other related functions.

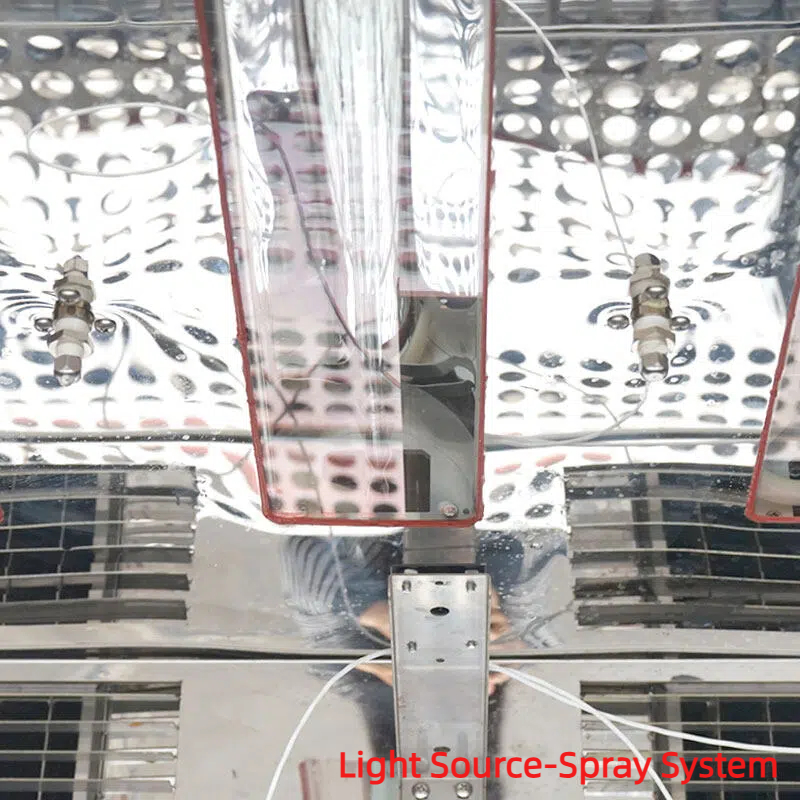

• Long-arc DC xenon lamp capable of simulating over 98% of the solar spectrum; imported special filters with different filter combinations simulate various environments.

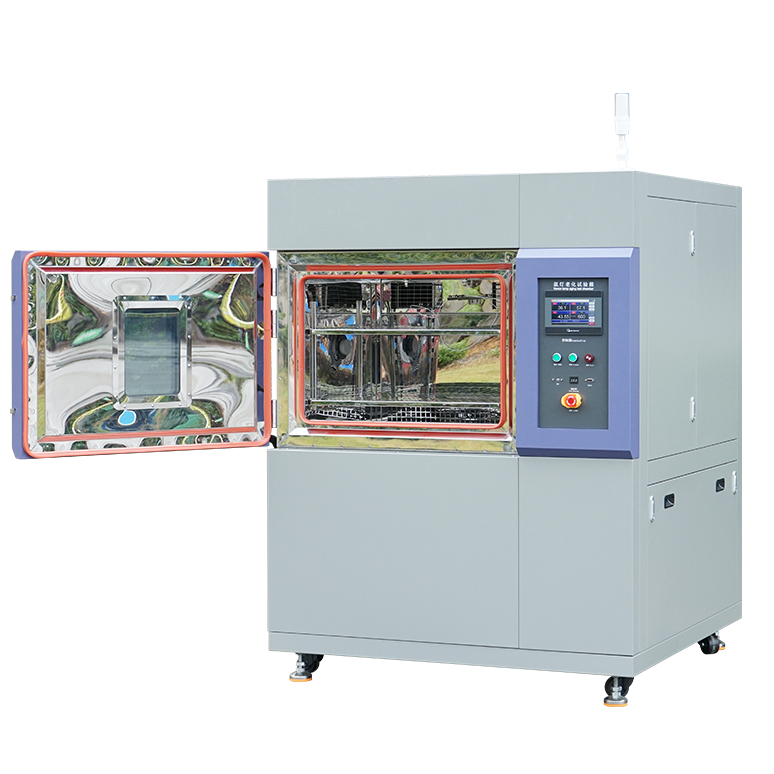

WBE Xenon Test Chamber
| Model |
WBE-XDP3-225L |
| Volume（L） |
225 L |
Inner Size
（mm） |
Width |
750 |
| Depth |
600 |
| Height |
500 |
| Paramenter |
Temp Range |
Air Temperature Range: 38～65℃ (Adjustable)
Black Panel Temperature Range: 40℃～100℃ adjustable (Light Cycle); 25～85℃ (Dark Cycle) |
| Humidity Range |
Light Cycle: 10%～75% R.H., Dark Cycle: 10%～98% R.H. |
| Temp Uniformity |
≤2.0℃ |
| Temp Deviation |
≤±2℃ |
| Temp Fluctuation |
≤±0.5℃ |
| Humidity Uniformity |
≤3.0%R.h |
| Humidity Fluctuation |
≤±2.0%R.h |
| Humidity Deviation |
±2.0%R.h～±3.0%R.h |
| Light Source |
Full Solar Spectrum Long-Arc Xenon Lamp, Service Life > 1200h |
| Xenon Lamp Power |
1.8KW，3Lamps |
| Irradiation Area |
＞5500cm² |
| Irradiance Range |
(290-800nm) 550 W/m² ～ 1150 W/m² (Settable)
Single-point control selectable at 340nm / 420nm / 300-400nm |
| Irradiance Sensor |
SMP10 High-Sensitivity Irradiance Sensor, capable of real-time collection of irradiance
intensity on the measured surface. |
| Rainfall Time |
Adjustable: 0-9999 min |
| Rainfall Cycle |
Intermittently adjustable: 0-240 min |
| Spray Water Pressure |
78 ～ 127 kPa
(Spray Time / Non-Spray Time): 18 min / 102 min (Typical Example) |
| Material |
Inner Chamber |
SUS304 High-Grade Stainless Steel Plate |
| Outer Chamber |
Cold-rolled steel plate + double-sided electrostatic powder coating process
WBE Weibang Standard Blue-Grey |
| Cooling Method |
Water-Cooled / Air-Cooled |
