WBE-9087B-Chip Shearing Bond Tester Machine is a high-precision, multi-functional chip push-pull force tester, widely used in chip testing, as well as in the production process testing and product failure testing of overall integrated packaging technology.
WBE-9087B-Chip Shearing Bond Tester Machine is a high-precision, multi-functional chip push-pull force tester, widely used in chip testing, production process testing of overall integrated packaging technology, and product failure testing.Widely used in semiconductor packaging, optical communication device packaging, LED packaging, military device products or materials for failure analysis and reliability testing.
Test standards:
Chip Shearing Bond Tester Machine Features:

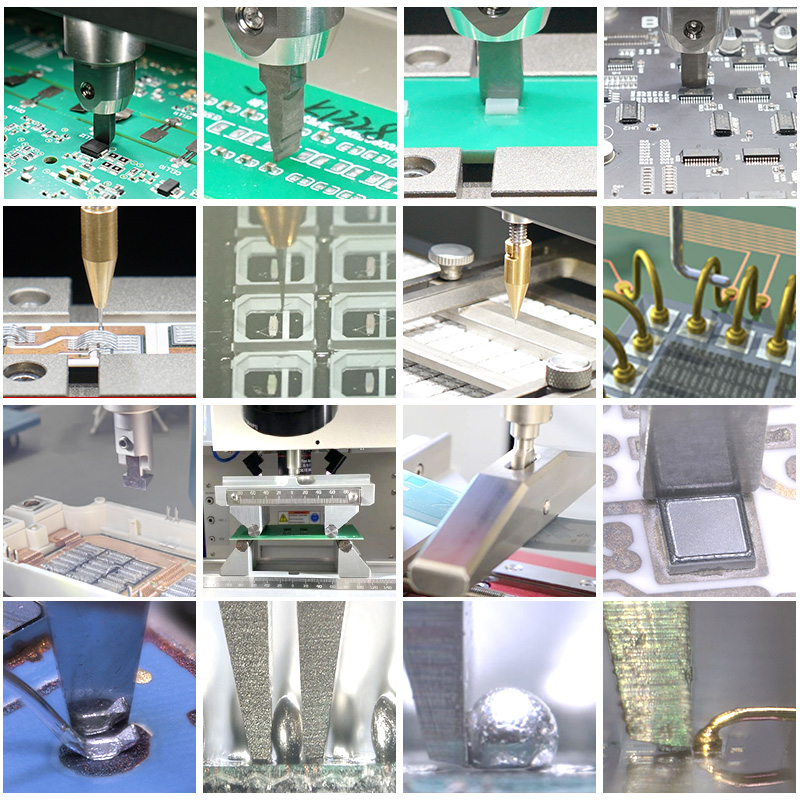

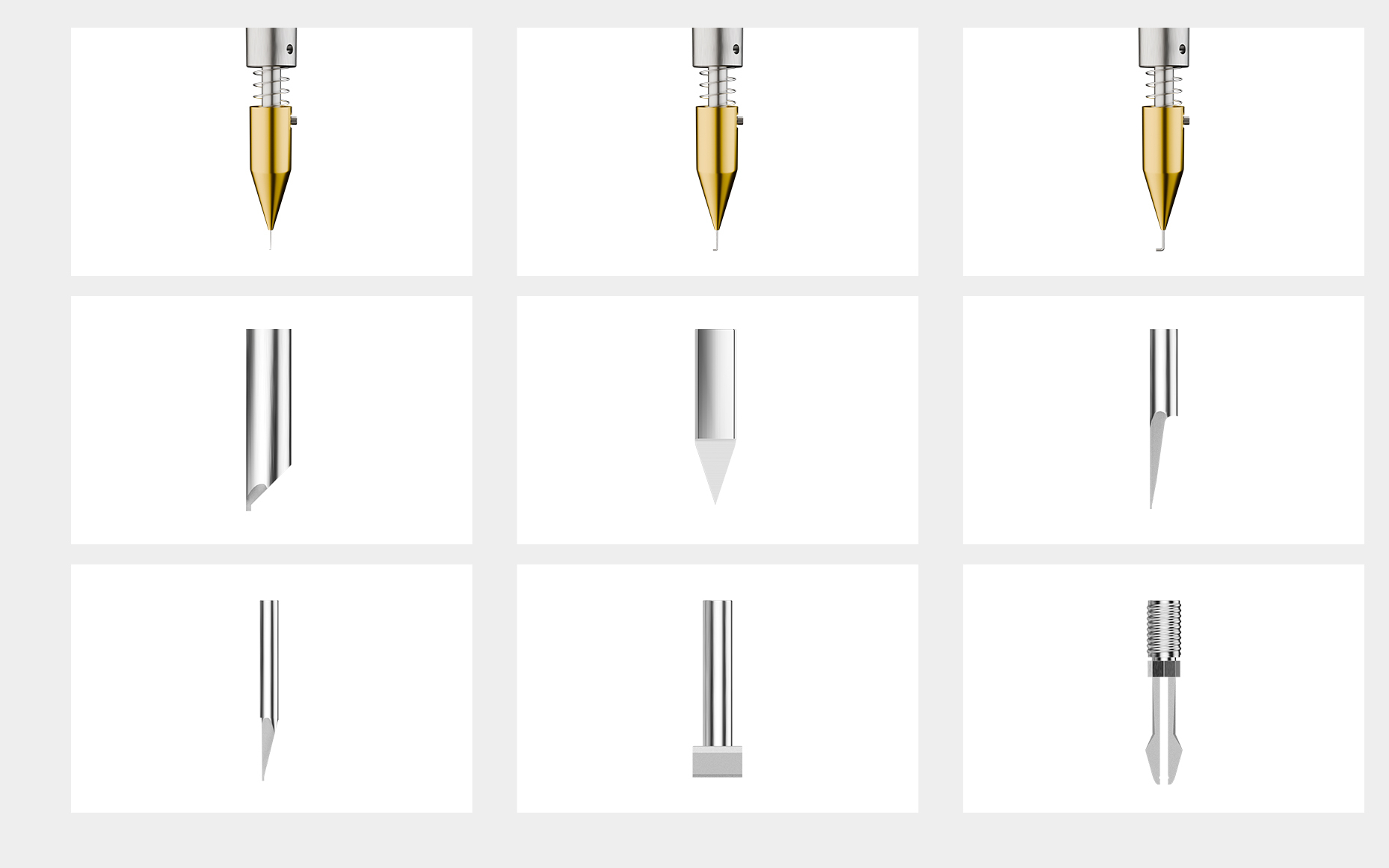

1. Capable of performing all tensile and shear applications, the comprehensive selection of hooks, load cutters, and jaws allows testing of a wide range of sample sizes and types.
2. Powerful and user-friendly dedicated software includes built-in CPK, MES, curve, and Excel spreadsheet data export capabilities.
3. All tests utilize VPM vertical traction and vertical positioning technology. Each sensor features an independent anti-collision and overload protection system to prevent accuracy loss due to operator error.
4. All-in-one test module with automatic rotation and module replacement, suitable for a variety of pulling, peeling, pushing, and shearing applications.
Chip Shearing Bond Tester Machine Specification
| Test Range | |||||||||
| Force Transducers - Shear Testing (Ball/Die) | Force Transducers - Push Testing (Ball/Die) | ||||||||
| Transducer | Auto Range | Transducer | Auto Range | ||||||
| □ BS250G | 250g | 100g | 50g | 25g | □ WP25G | 25g | 10g | 5g | 2.5g |
| □ BS1KG | 1kg | 500g | 250g | 100g | □ WP50G | 50g | 25g | 10g | 5g |
| □ BS5KG | 5kg | 2.5kg | 1kg | 500g | □ WP100G | 100g | 50g | 25g | 10g |
| □ BS20KG | 20kg | 10kg | 5kg | 2kg | □ WP200G | 200g | 100g | 50g | 25g |
| □ DS5KG | 5kg | 2.5kg | 1kg | 500g | □ WP500G | 500g | 250g | 100g | 50g |
| □ DS10KG | 10kg | 7.5kg | 5kg | 2.5kg | □ WP1KG | 1kg | 500g | 250g | 100g |
| □ DS50KG | 50kg | 40kg | 20kg | 10kg | □ WP5KG | 5kg | 2.5kg | 1kg | 500g |
| □ DS100KG | 100kg | 50kg | 20kg | 10kg | □ WP10KG | 10kg | 5kg | 2.5kg | 1kg |
| □ DS200KG | 200kg | 100kg | 50kg | 20kg | □ WP20KG | 20kg | 10kg | 5kg | 2kg |
| □ DS500KG | 500kg | 300kg | 250kg | 100kg | □ WP50KG | 50kg | 20kg | 10kg | 5kg |
| Pull Test Tweezers/ColdBump | Push Test-Down/Pull | ||||||||
| Transducer | Auto Range | Transducer | Auto Range | ||||||
| □ TP100G | 100g | 50g | 25g | 10g | □ DP100G | 100g | 50g | 25g | 10g |
| □ TP1KG | 1kg | 500g | 250g | 100g | □ DP5KG | 5kg | 2.5kg | 1kg | 500g |
| □ TP5KG | 5kg | 2.5kg | 1kg | 500g | □ DP10KG | 10kg | 5kg | 2.5kg | 1kg |
| □ TP10KG | 10kg | 5kg | 2.5kg | 1kg | □ DP20KG | 20kg | 10kg | 5kg | 2kg |
| □ TP20KG | 20kg | 10kg | 5kg | 2kg | □ PP5KG | 5kg | 2.5kg | 1kg | 500g |
| □ CBP2.5KG | 2.5kg | 1kg | 500g | 250g | □ PP10KG | 10kg | 5kg | 2.5kg | 1kg |
| □ CBP5KG | 5kg | 2.5kg | 1.25kg | 500g | □ PP50KG | 50kg | 25kg | 10kg | 5kg |
| Key Specifications | |||||||||
| Model | WBE-9089C | ||||||||
| Test Stations | 1-6 modular units | ||||||||
| XY-Axis Travel | 100×100 mm Resolution 0.1um | ||||||||
| Z Axis Travel | 75 mm Resolution 0.1um | ||||||||
| XY axis displacement positioning accuracy |
±5um | ||||||||
| Maximum test force on Y axis | 200kg(Customizable) | ||||||||
| Z-axis travel/resolution | ±2um, accuracy within 2mm ±1um | ||||||||
| Z-axis test accuracy | 10mm/s | ||||||||
| Z axis maximum speed | 20kg (other ranges available) | ||||||||
| Maximum test force on Z axis | Comprehensive test accuracy ±0.1% | ||||||||
| Module replacement method | Automatic rotation replacement (including shear force/thrust test, tension test, down force test, pull-out force/hot and cold pull-out test) |
||||||||
| Platform fixture | The platform can share various fixtures, and the fixture can rotate 360° | ||||||||
| Microscope | High-definition zoom microscope with 1~60x magnification (optional high-definition CCD camera) | ||||||||
| Machine calibration | Standard pair of corresponding calibration fixture and weights | ||||||||
| Vacuum Supply | 550 mm Hg | ||||||||
| Compressed Air | 4.5~6 bar | ||||||||
| Power Supply | 110V/220V ±5%, 50/60 Hz, 1kW (4.5A) | ||||||||
| Weight | 95kg | ||||||||
| Software | Integrated Windows 11 PC Real-time data logging & export (CSV/PDF/TXT) | ||||||||
