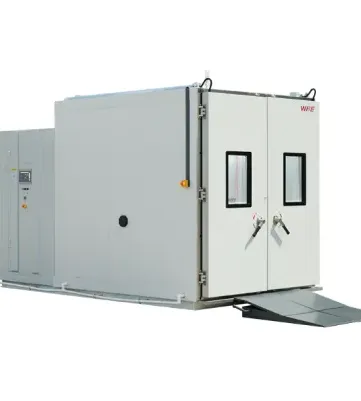

The Critical Role of a Walk-In Chamber in System-Level Testing.

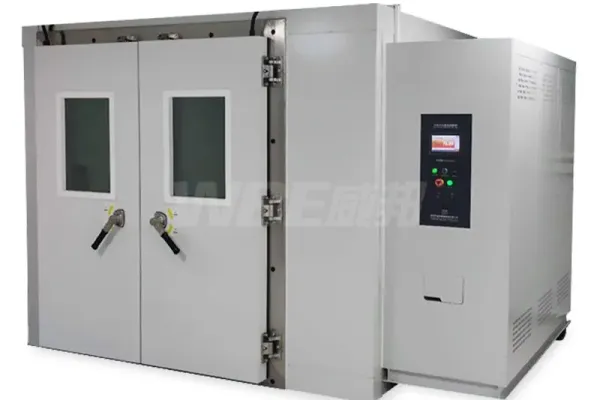

Walk-in environmental chambers are used for testing products that are too large to fit in standard chambers. Primary applications include full-vehicle testing in the automotive industry, testing large aerospace components, qualifying renewable energy systems like solar panels and battery racks, and performing reliability tests on large batches of smaller electronic products simultaneously.

The difference is in the construction method. Modular walk-in environmental chambers are built using prefabricated insulated panels that are locked together on-site, allowing for flexibility in size and easy disassembly or relocation. Welded, or solid construction, chambers are custom-fabricated with continuously welded interior seams, offering the best performance for extreme temperatures, high humidity, or high-altitude simulation.

Installing walk-in environmental chambers is a major project. Facility requirements include a high-capacity, three-phase electrical supply, a reinforced concrete floor capable of supporting the chamber's significant weight, and often a connection to a facility's process chilled water system for heat rejection. Adequate ceiling height and clearance around the chamber for maintenance are also crucial.

A drive-in chamber is a specific type of walk-in environmental chambers designed for the automotive industry. It is large enough and equipped with a reinforced floor and oversized doors to allow a complete, operational vehicle to be driven directly into the test space for full-system environmental and operational testing.

Maintaining uniformity in walk-in environmental chambers is a significant engineering challenge. It is achieved through a carefully designed air conditioning and circulation system. This involves a remote air plenum (or conditioning unit) with powerful fans, heaters, and cooling coils. Conditioned air is distributed throughout the chamber via precisely located ductwork and vents to ensure consistent temperature and humidity in all corners of the test space.

You should choose WBE because we specialize in non-standard, custom projects. Building walk-in environmental chambers is a core competency, not an afterthought. Our 12,000-square-meter factory is equipped for large-scale fabrication, and our experienced engineering team manages the entire project from initial design consultation to final on-site commissioning, ensuring a solution that is perfectly tailored to your needs and built to the highest quality standards.
